TPP01-Z Smart Control Panel S · 4-inch
A compact wall-mounted control point for everyday devices, rooms and scenes, with a built-in Zigbee gateway and Smart Life integration.
China Jine model: TPP01-Z (EU), powered by 100–240 V AC through L/N. A Tuya ecosystem control panel supplied through our Dubai store.
Display4-inch · 480 × 480
GatewayZigbee · 80+ devices
Wireless2.4 GHz Wi-Fi
Installation86 × 86 mm · L/N
Made for everyday control
A simple screen that makes a smart room easier to use.
Place favourite devices and scenes where family members, guests or staff can reach them without opening a phone app.
Built-in Zigbee gateway
Connect 80+ supported Tuya Zigbee sub-devices without adding a separate gateway for the panel.
Touch, app and voice
Use the screen, Smart Life app or supported Alexa voice interaction, subject to account and firmware availability.
Compact EU format
The 86 × 86 mm front format suits a clean, familiar wall installation in residential and hospitality interiors.
Focused Linux platform
A dedicated smart-control interface designed for continuous wall-panel use rather than a general-purpose tablet.
Doorbell interaction
View and answer supported Tuya video-doorbell calls when used with compatible devices and firmware.
Interface truth
Designed for a straightforward L/N installation.

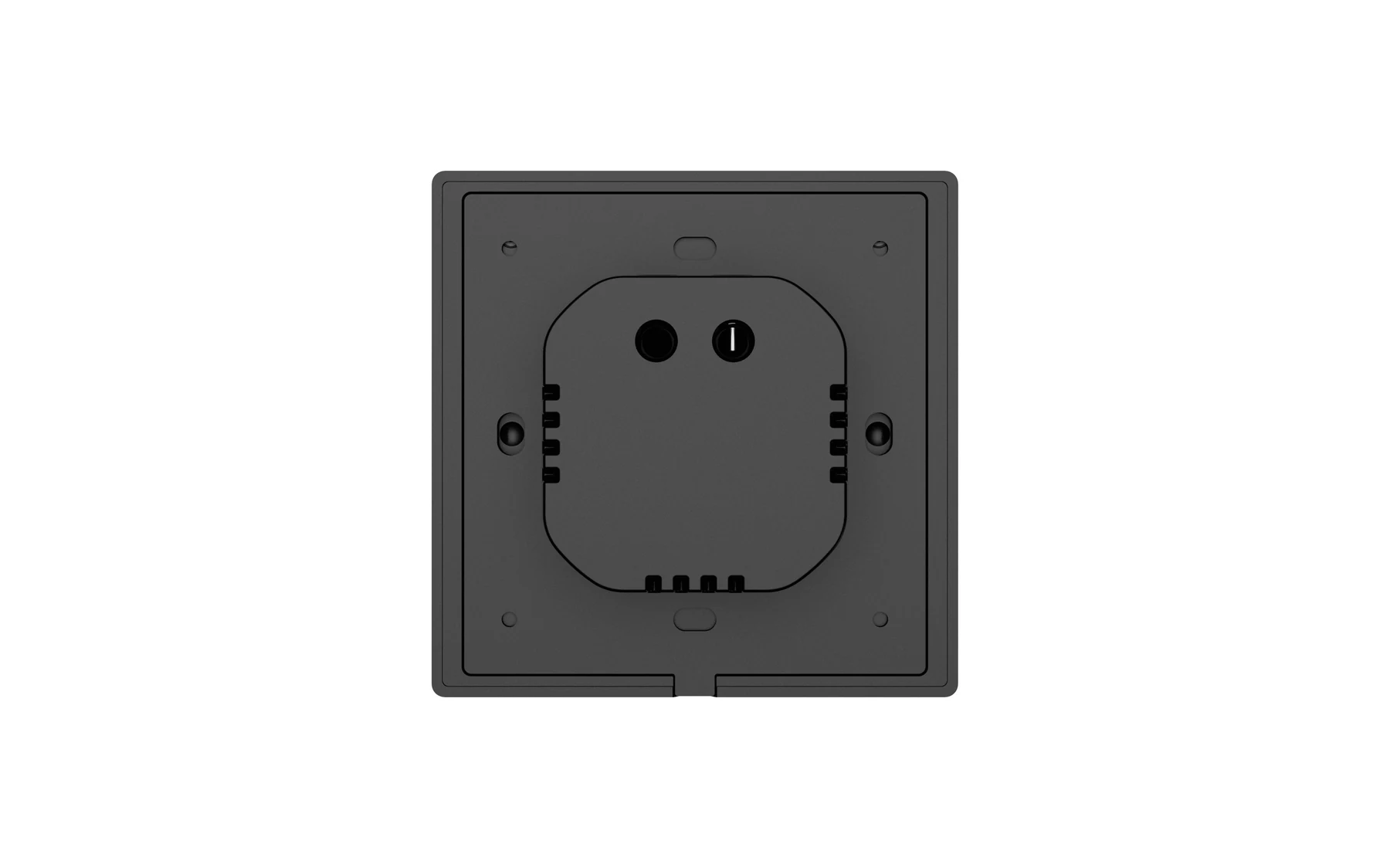

The official rear view shows only the live and neutral power terminals. Installation must be completed with the circuit isolated by a qualified electrician.
- Power input 100–240 V AC, 50/60 Hz
- Wall connection L + N; neutral is required
- Wireless 2.4 GHz Wi-Fi and Zigbee
- Indoor use 0–40°C, dry locations
TPP01-Z (EU) connection: compact L/N mains input for a clean wall installation. RJ45, RS485, PoE, external audio and relay terminals belong to other control-panel configurations.
Core specification
Compact hardware, clearly defined.
Key specifications and installation details for the TPP01-Z (EU) control panel.
| Model | TPP01-Z (EU) · Smart Control Panel S |
|---|---|
| Display | 4-inch multi-touch capacitive screen · 480 × 480 · anti-fingerprint coating |
| Platform | Linux · Rockchip RK3308B-S quad-core Cortex-A35, 1.3 GHz |
| Memory | 256 MB DDR · 256 MB flash |
| Wireless | 2.4 GHz Wi-Fi · Zigbee; Tuya listing also identifies Bluetooth / SigMesh support |
| Audio | Two microphones · one 1 W speaker |
| Power | 100–240 V AC ±10%, 50/60 Hz · L/N · rated current 74 mA |
| Dimensions | 86 × 86 × 10.5 mm front; approximately 36.2 mm including base |
| Environment | 0–40°C · 5–90% RH, non-condensing |
