FHD visual control
A 1920 × 1200 multi-touch display presents rooms, devices and scenes with far more space than a compact wall panel.
← Smart control panels
Tuya ecosystem product · EU standard
TPA10-M2E Control Panel MAX · 10.1-inch
A high-resolution central interface for rooms, devices and scenes, with integrated gateways, camera, audio and four physical shortcut controls.
China Jine current stock: pure EU L/N power-base version without RJ45 or RS485. Wired-interface versions may be added later and will be identified separately.
Display10.1-inch FHD
Resolution1920 × 1200
GatewaysZigbee 3.0 + BLE Mesh
InteractionTouch · buttons · voice · app
The visual centre of a smart home
More than a screen: control, gateway, video and audio in one panel.
The larger interface gives a project a clear central point for lighting, climate, curtains, scenes, security and compatible intercom workflows.
Two built-in gateways
Zigbee 3.0 and Bluetooth / BLE Mesh support compatible Tuya sub-devices and reduce separate gateway hardware.
Camera and audio
A 5 MP privacy-shutter camera, dual microphones and dual speakers support compatible calls, doorbells and intercom use.

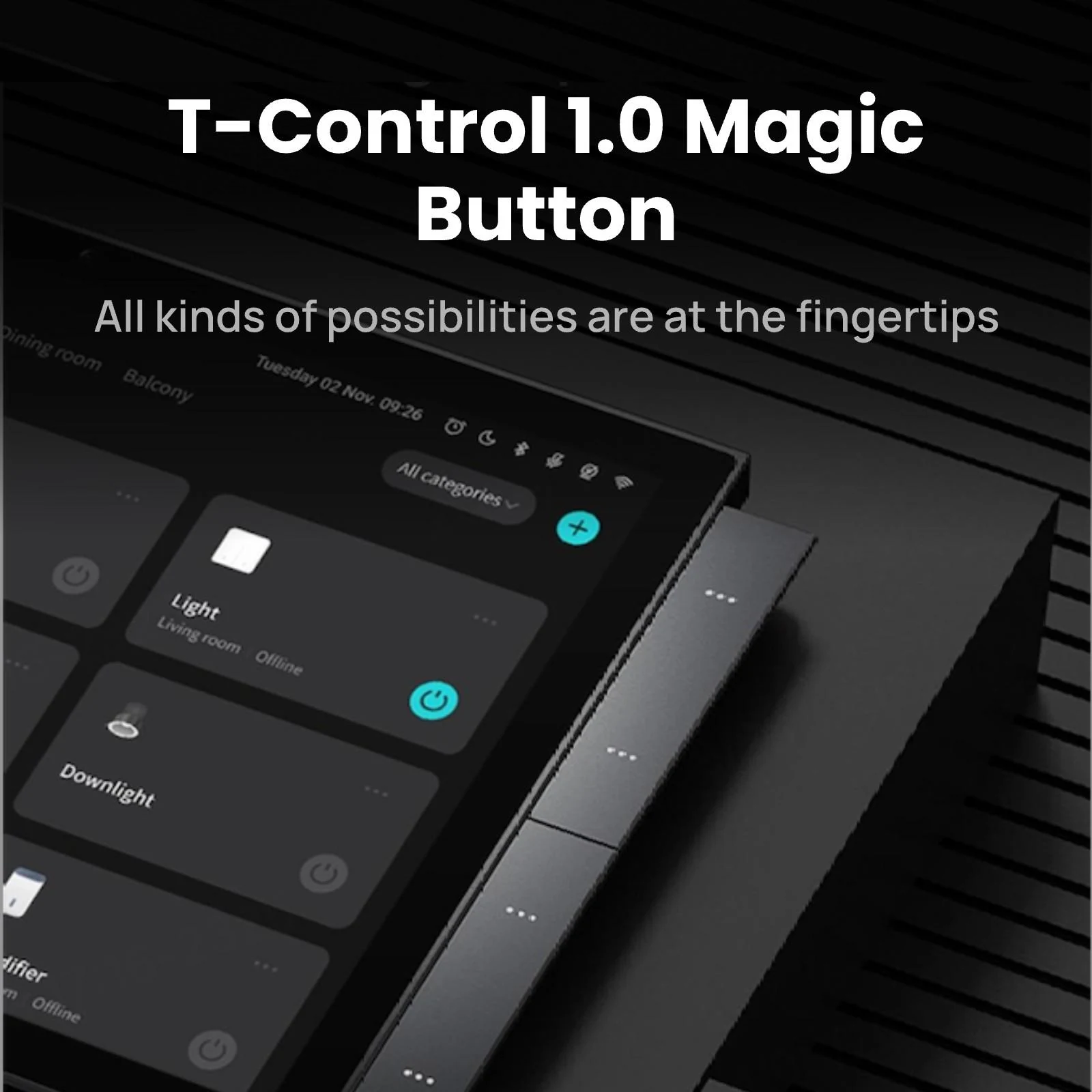

Four shortcut buttons
Physical side keys can provide rapid access to favourite devices or scenes without navigating through menus.
Presence-aware interface
ToF proximity, ambient-light and temperature/humidity sensing can make the wall-panel experience more responsive.
Multiple ways to control
Touchscreen, buttons, supported voice functions and the Smart Life app suit different users and situations.
Current-stock interface
The model name alone does not define every base.

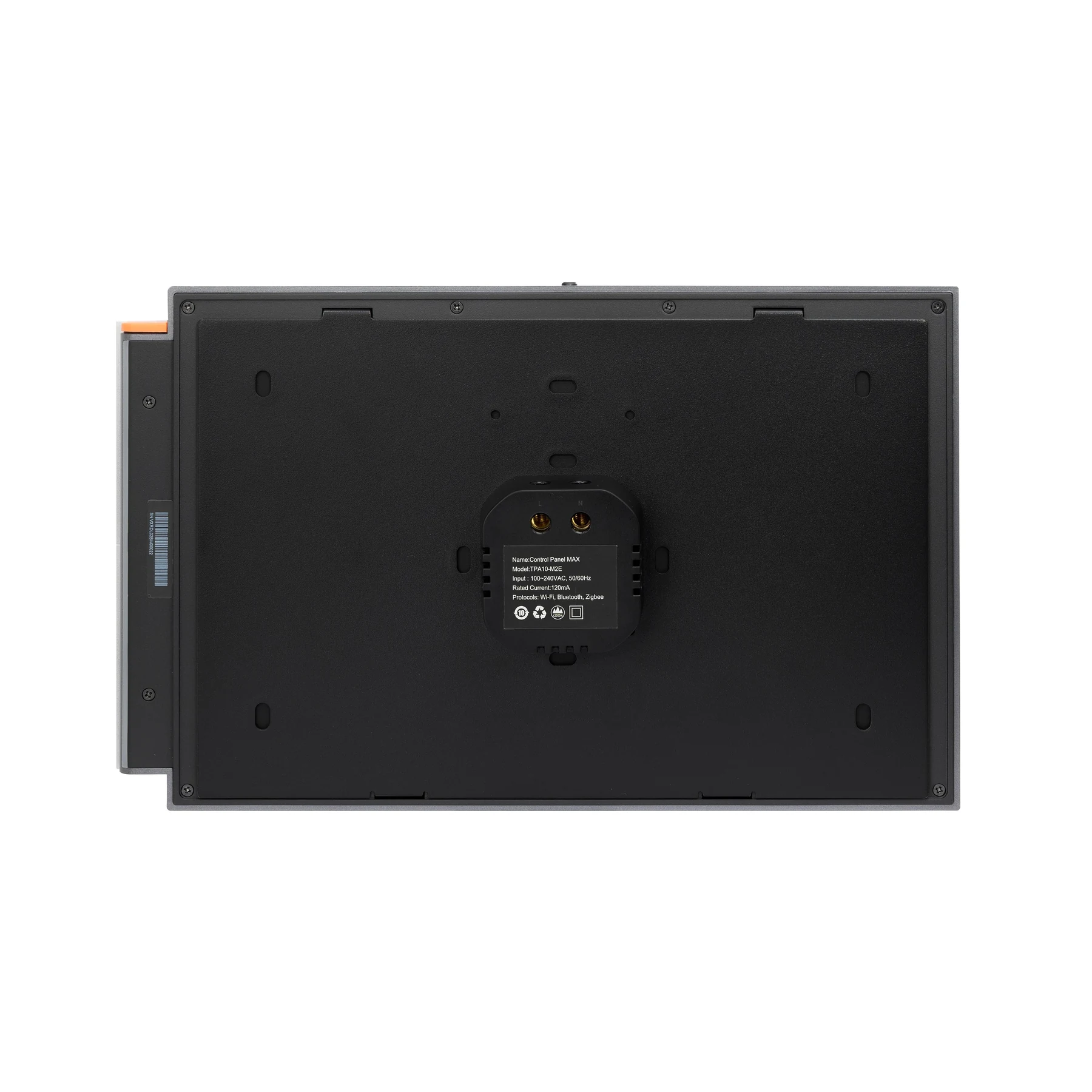

The Control Panel MAX family exists with different regional and interface bases. The version currently stocked by China Jine is the EU L/N power version shown here.
- AC input 100–240 V AC, 50/60 Hz, L/N
- Alternative input 12 V DC, 1 A max through Type-C
- Current stock No RJ45 Ethernet or RS485
- Not PoE Do not connect a PoE source to versions with LAN
China Jine configuration: the current EU model uses an L/N power base. LAN, RS485 and relay functions are available on other Control Panel MAX family configurations.
Core specification
A serious central panel for a complete smart-home package.
Display, gateway, audio, sensing and installation details for the Control Panel MAX.
| Model | TPA10-M2E · Control Panel MAX · EU Standard |
|---|---|
| Display | 10.1-inch multi-touch capacitive screen · 1920 × 1200 FHD · anti-fingerprint coating |
| Platform | Android 11 · Rockchip PX30-S quad-core Cortex-A35, 1.5 GHz |
| Memory | 2 GB RAM · 8 GB storage |
| Wireless | 2.4 GHz Wi-Fi · Bluetooth 5.0 / BLE Mesh · Zigbee 3.0 |
| Gateway capacity | 128+ Zigbee and 128+ BLE/SigMesh sub-devices under laboratory conditions |
| Camera & audio | 5 MP camera with physical shutter · two microphones · two 1.8 W speakers |
| Sensors | ToF proximity · ambient light · temperature and humidity |
| Power | 100–240 V AC L/N; 12 V DC / 1 A max through Type-C |
| Dimensions | 259 × 161 × 13 mm; approximately 37 mm including base |
| Environment | 0–40°C · 5–90% RH, non-condensing |
Fast physical control
Favourite actions without searching through menus.
The four side buttons are designed for high-frequency controls or scenes, complementing the large touchscreen and Smart Life app.
- Assign common devices or scenes
- Give visitors and family members a familiar control method
- Use the screen for detailed control and the keys for rapid actions
Documents & demonstration
Go beyond the product card.
PDF · 17 pagesSpecification & Installation GuideHardware, functions, interfaces, wiring and mounting.
Open PDF →
PDF · User manual v2.0Regional Bases & InstallationCurrent manufacturer manual covering M2A, M2E and M2U.
Open PDF →
Official Tuya B2B videoControl Panel MAX DemoProduct operation, regional bases and shortcut-panel setup.
Watch video →
